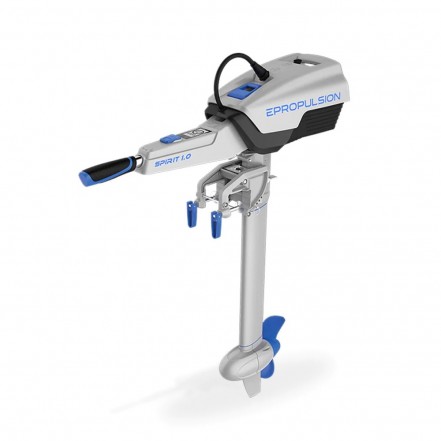

ePropulsion 1.0 Spirit Plus Motor Extra Short

The Spirit 1.0 Plus is a portable, equivalent to, 3HP electric outboard made for dingies, fishing boats, sailboats and tenders. It features a 1276Wh large integrated lithium battery for long range. It's nimble, lightweight, and clean power.

Battery:

The integrated rechargeable battery is lightweight, only 19 lbs or 8.7 kg, and robust for tough conditions.
Positive Buoyancy - Never worry if the battery drops into the water. 1276Wh Capacity - High energy density in a compact size to build large a battery capacity. 180W Solar Charging - Dual power ports allow solar charging when discharging.

Specifications:

Power - 1 kW (3HP equivalent). Input Voltage - 39V 60V. Standard Battery - Spirit Battery Plus, 1276 Wh li-ion polymer.
Motor Weight - 10.6 kg / 23.4 lbs. Battery Weight - 8.7 kg / 19.2 lbs. Charging Time - Standard charger: 8.5 Hrs Fast charger: 3.5 Hrs. Propeller - 11 Ã 5.8 2-blade composite propeller. Trim / Tilt Angles - 0, 7, 14, 21 / 70.
Shaft LengthExtra Short for tenders and small dinghies. Motor - Brushless DC motor. Direct Drive. Maintenance free.
Range in a 3m Tender

Spirit 1.0 Plus has a 1276Wh integrated battery. At full throttle 1000 Watts, you get 6.2 mph for 75 minutes and a range of 7.75 miles. If you reduce the throttle to 25%, which is 250 Watts, you will get 4.4 mph for 5 hours with a range of 22 miles.

Range test in a 3 metre tender

Range at 4.4 mph = 22 miles. Range at 6.2mph = 7.75 miles. Range in a 21ft Sailing Boat. Range at 5.5mph = 6.5 miles.
Range at 4.5 mph = 9 miles. Range at 3.5 mph = 11 miles.
Test conditions - Wind: F3. Tide flow: 1.4 knots. Location: Hamble River. Distance: 5.15 miles. Time: 1 hour 22 minutes.
Battery amount used: 39%.
