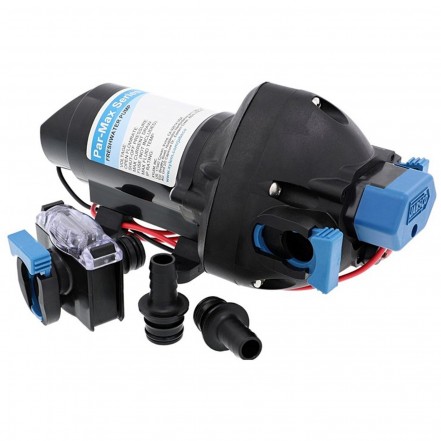

The Jabsco 31395-2512 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer.
The Jabsco Par-Max 3 pump replaces Jabsco 31395-0292 Par-Max 2.9 pressure pumps.
Enclosed motor. Integrated Pressure Switch. Vibration & noise reducing mounting. Selfpriming. Runs dry without damage.
Inlet OutletFittings for 13mm (1/2") ID hose. Self Primes up to 1.8 Metres (5.9 Feet). Replaces Jabsco 31395-0292 Par Max 2.9, WP-001 & 509732. Model 31395-2512-3A. Series Par Max 3. Hose Size 13mm / 1/2. Voltage 12V DC.
Length 230mm (9"). Height 110mm (4.3"). Width 152mm (6"). Fuse 10A. Amps5.2A.Supplied WithQuick Connect Fittings & Inline Strainer. Flow Rate 11 LPM (3 US GPM.) Approvals, Complies with ISO8846 Marine (Ignition protection).
Cut In Pressure 15 PSI / 1 Bar. Cut Out Pressure 25 PSI / 1.7 Bar. Warranty 3 Years.
