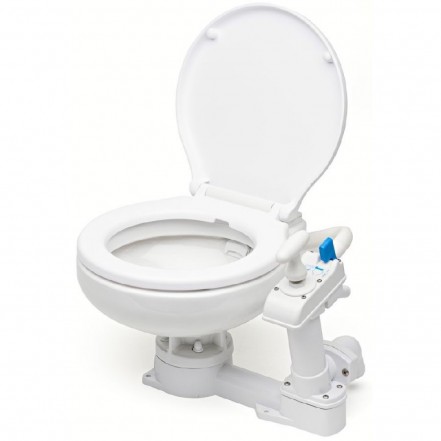

Manual Compact 99 Toilet

A range of toilets from Ocean Technologies.

Bowl made from white vitreous porcelain with corrosion resistant parts throughout.
Slotted base fixing holes allowing easy and flexible replacement of many toilet makes including Jabsco and RM.
Toilet can be mounted above and below the waterline using appropriate vented loop.
Fitted with self priming flush and rinse dual operation manual pump.
Pump can be mounted for left hand or right hand operation.
Waste discharge can be connected for discharge overboard* or to a waste holding tank.
*Check local regulations for overboard toilet discharge.

Pipe Connections: Inlet: 3/4inch 19mm Hose Barb. Outlet: 1-1/2inch 38mm Hose Barb.
Weight: 9kg
Dimensions as per drawing - A: 345mm. B: 650mm. C: 215mm. D: 425mm. E: 450mm. F: 170mm.

Features:

This latest design allows the boat owner or service agent to easily replace the existing toilet without having to bore
new holes. Can easily substitute Jabsco, RM and many other brands.Fixing holes are same of Jabsco manual toilet.
Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder.
Angled pump and long stroke for more comfortable operation. Innovative brake bushing prevents annoying leakage at the handle. Spray nozzle elbow and soft close seat.
