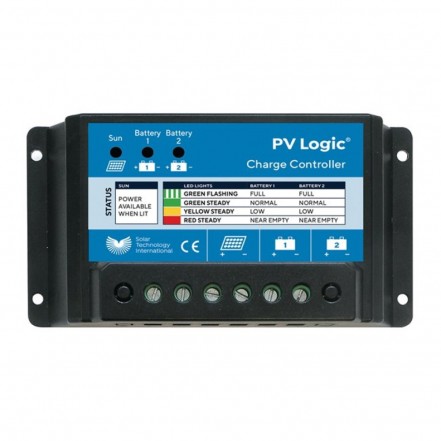

Dual Battery Charge Solar Controller 10 amp

This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems. The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

Features:

Reverse current protection. Unique dual battery charging function. Efficient Series PWM charging, increases battery lifetime and improves solar system performance. 12/24V automatic recognition. Overload, Lightning, Deep discharge and Charge current protection up to 10A provided. All solar panels (except the 5w &10W) require a voltage regulator to ensure that the battery is not overcharged. We recommend this controller for panels up to and including 150w.

Electrical Specifications:

Nominal System Voltage 12/24VDC (automatic system voltage recognition). Battery Voltage Range: 6-36V. Rated Battery Current: 10A. Charge Circuit Voltage Drop ¤0.26V. Self-consumption: ¤6mA.
Temperature Compensation Coefficient: -30mV/oC/12V(25o ref). Over Voltage Disconnect Voltage: 16V/32V.
Charging Limit Voltage: 14.6V/29.2V. Equalize Charging Voltage: 14.6V/29.2V. Float Charging Voltage: 13.8/27.2V.
Operating temperature: -35oC to +55oC. Overall dimensions: 135 x 70 x 35mm. Mounting hole size (in case): 3.8mm.
Terminal size: 6mm2. Net weight: 155g.
