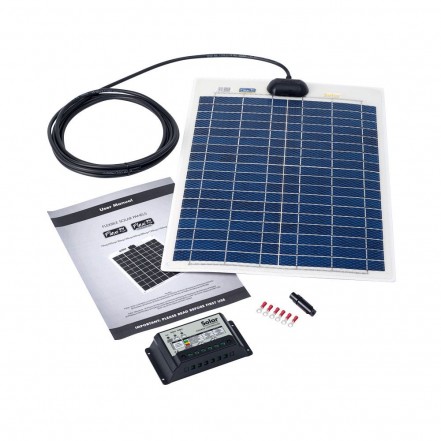

Flexible Solar Panel/Controller Kit 20 watt

The 20w PV Logic flexi solar panel can deliver up to 130wh per day and as such a degree of self-sufficiency can be achieved where power demand is limited to lighting, mobile device charging, powering electric gates and other low energy consumption DC appliance power is needed. The panel is supplied with a 4m cable, terminals, fuse and detailed installation instructions. The 10Amp Dual Battery Charge Controller is for off-grid solar systems and has the additional functionality that it can charge to batteries simultaneously and can work on both 12v or 24v systems.

Solar Panel Specifications:

Power: 20W. Size: 475 x 345 x 4mm. Weight: 0.79Kg. Amp hours per day (A): 6.84. Charge Controller: 10Ah.
Vmp (VDC): 17.6. Imp (A): 1.14. Voc (V): 21.9. Isc (A): 1.23.

Charge Controller Specifications:

Nominal System Voltage: 12/24VDC (automatic system voltage recognition). Battery Voltage Range: 6-36V. Rated Battery Current: 10A. Over Voltage Disconnect Voltage: 16V/32V. Charging Limit Voltage: 14.6V/29.2V.
Equalize Charging Voltage 14.6V/29.2V. Float Charging Voltage: 13.8/27.2V. Operating temperature: -35oC to +55oC.
Overall dimensions: 135 x 70 x 35mm. Terminal size: 6mm2. Net weight: 155g.
