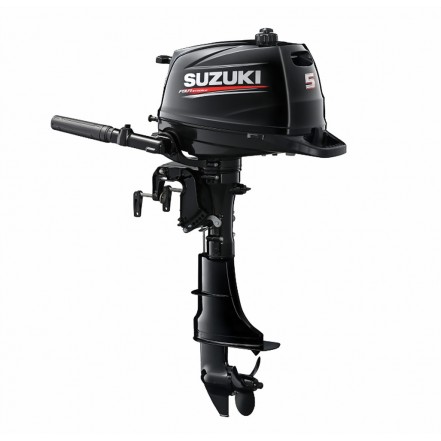

Suzuki Outboard Motor DF5A Long Shaft

The brand new 4hp, 5hp and 6hp models are lightweight, easy and quiet to use, incredibly reliable plus they also boast a new design and unique colour.

With a compact design and weighing in at only 24kg (short shaft) these new outboards are incredibly versatile and with class-leading technical innovations and some simple, yet effective, ergonomic design features, these new models are incredibly easy to live with.

The key benefits and features are:

• Easy to transport and store courtesy of a new three-way storage capability which eliminates the worry of fuel or oil leakage
• Easy to lift and carry with two sturdy handles
• Easy to start after storage courtesy of a new forced lubrication and gravity-fed fuel system
• Easy to use with new tilt system
• Smooth and quiet running thanks to an offset crankshaft
• Low vibration as a result of a new tiller handle design
• Highly reliable thanks to a first in class oil filter
• Incredibly durable thanks to Suzuki's anti-corrosion system

Dimensions and weights:
Weight: 25.0Kg. Long Shaft: Recommended transom height: 508mm (20in).

Engine specifications:

Bore x Stroke: 60.4 x 48mm.
Starting System: Manual.
Engine Type:OHV.
Fuel Delivery System: Carburettor.
No. of Cylinders: 1.
Piston Displacement cm3: 138cc.
Maximum Output: 3.7kW.
Full Throttle Operating Range: 4,500 - 5,500.
Steering: Tiller.
Oil Pan Capacity: 0.7Lit.
Fuel Tank Capacity: 1.0Lit.
Ignition System: Digital CDI.
Alternator: 12V 6A. (optional)
Engine Mounting: Bushing Type.
Trim Method: Manual.
Gear Ratio: 1.92:1.
Gear Shift: F-N-R.
Exhaust: Above Prop Exhaust.
